Resolution - 2MP, 4MP, 5MP, 8MP
Audio - Most models have built-in microphone
Corridor Mode - The image can be rotated by 90 degrees for corridor applications
ONVIF - Easy integration with the wide range of VMS brand
NDAA - All the cameras are NDAA compliant

Bullet

Product Matrix

Product Type	Fixed Bullet
Application Environment	Outdoor
Lens	Fixed focal
2MP	Z316 Z316-P1 Z330 Z330-P1 K31 K31-P1 L31 L31-P1
4MP	Z317 Z317-P1 Z322 Z331 Z331-P1 K32 K32-P1 Z324
5MP	Z315 K33 Z319 Z332
6MP	L33 L33-P1
8MP	Z318 Z325

Comparison

Model	K31	K31-P1	L31	L31-P1	Z316
Product Type	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet
Maximum Resolution	2MP	2MP	2MP	2MP	2MP
Sensor Size	1/2.7"	1/2.7"	1/2.7"	1/2.7"	1/2.7"
Light Type	Adaptive IR LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 55m, White LED: 50m	Adaptive IR LED: 55m, White LED: 50m	Adaptive IR LED: 50m
Wide Dynamic Range	Extreme (130 dB)	Extreme (130 dB)	Extreme (140 dB)	Extreme (140 dB)	Superior (120 dB)

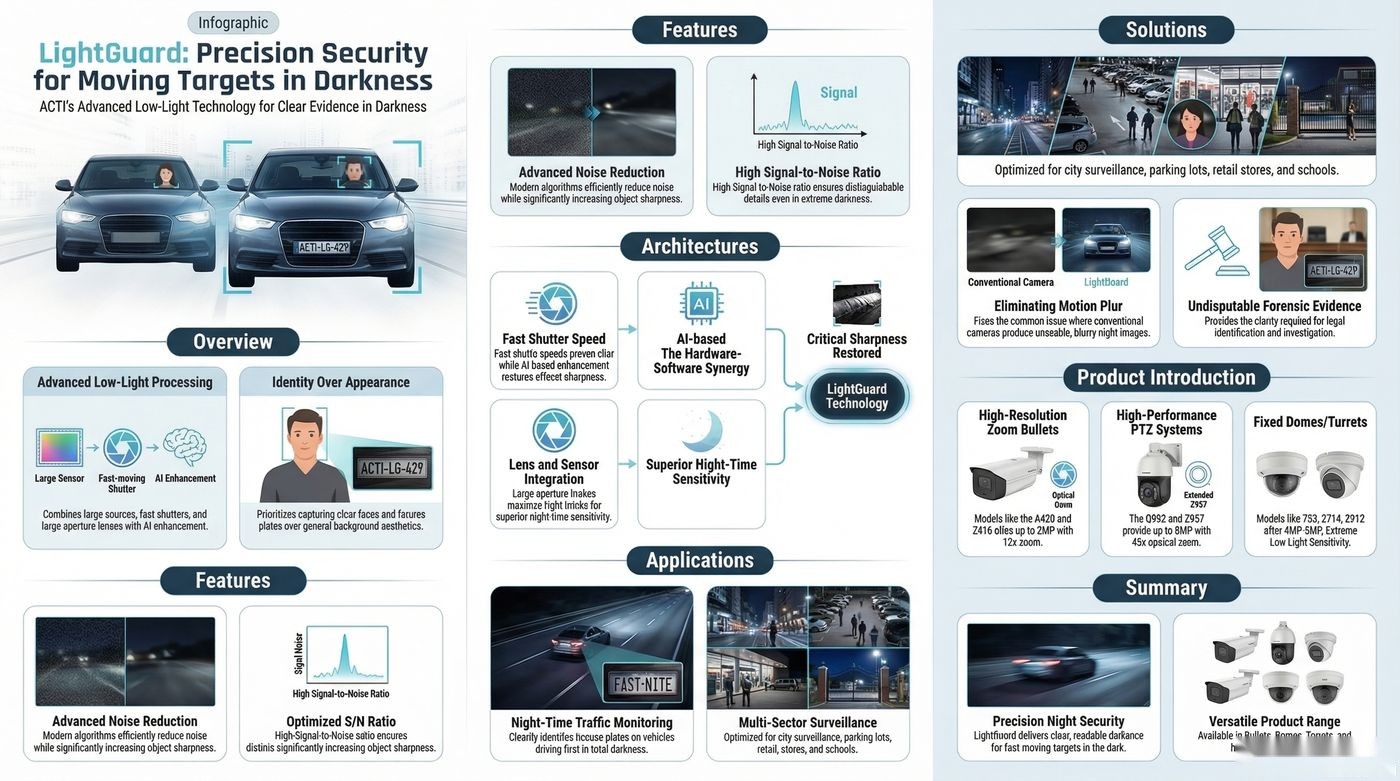

LightGuard	-	-	-	-	Yes
Smart Dual Light	-	-	Yes	Yes	-
Maximum Frame Rate	30fps	30fps	30fps	30fps	30fps
Audio	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone
Maximum fps vs Resolution	30@2MP	30@2MP	30@2MP	30@2MP	30@2MP
Multi-Streaming	Dual Stream	Dual Stream	Triple Streams	Triple Streams	Dual Stream

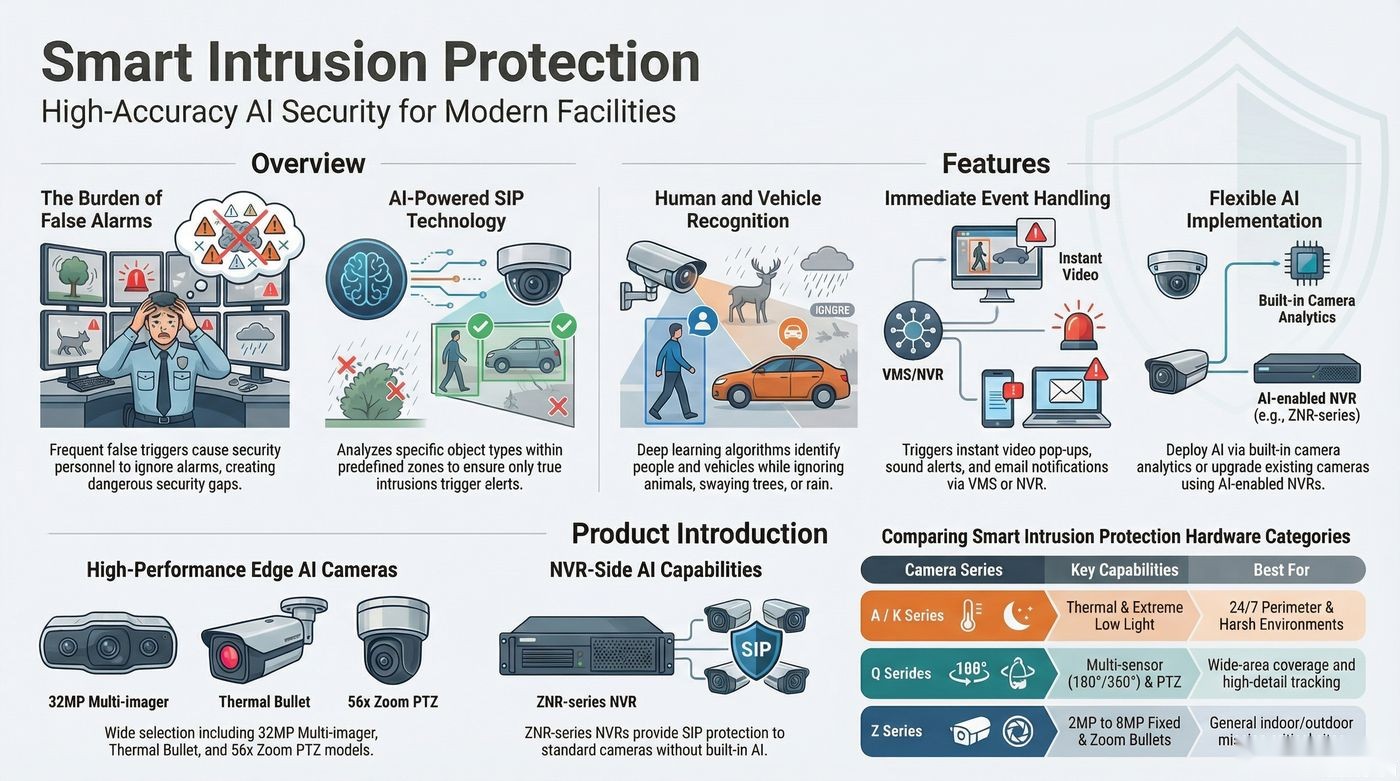

Built-in Analytics	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)
Environmental Casing	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)
Anti-Corrosion	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)
UL Listed	Yes	Yes	Yes	Yes	Yes
NDAA	Yes	Yes	Yes	Yes	Yes

Model	Z316-P1	Z330	Z330-P1	K32	K32-P1
Product Type	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet
Maximum Resolution	2MP	2MP	2MP	4MP	4MP
Sensor Size	1/2.7"	1/2.7"	1/2.7"	1/2.7"	1/2.7"
Light Type	Adaptive IR LED: 50m	Adaptive IR LED: 50m, White LED: 50m	Adaptive IR LED: 50m, White LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m
Wide Dynamic Range	Superior (120 dB)	Superior (120 dB)	Superior (120 dB)	Extreme (130 dB)	Extreme (130 dB)
Smart Dual Light	-	Yes	Yes	-	-
Maximum Frame Rate	30fps	30fps	30fps	30fps	30fps
Audio	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone
Maximum fps vs Resolution	30@2MP	30@2MP	30@2MP	25@4MP, 30@2MP	25@4MP, 30@2MP
Multi-Streaming	Dual Stream	Dual Stream	Dual Stream	Dual Stream	Dual Stream
Built-in Analytics	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)
Environmental Casing	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)
Anti-Corrosion	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)
UL Listed	Yes	Yes	Yes	Yes	Yes
NDAA	Yes	Yes	Yes	Yes	Yes

Model	Z317	Z317-P1	Z322	Z324	Z331
Product Type	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet
Maximum Resolution	4MP	4MP	4MP	4MP	4MP
Sensor Size	1/2.7"	1/2.7"	1/2.7"	1/1.8"	1/2.7"
Light Type	Adaptive IR LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m, White LED: 50m	White LED: 40m	Adaptive IR LED: 50m, White LED: 50m
Wide Dynamic Range	Superior (120 dB)	Superior (120 dB)	Superior (120 dB)	Extreme (135 dB)	Superior (120 dB)
Smart Dual Light	-	-	-	-	Yes
Maximum Frame Rate	30fps	30fps	30fps	30fps	30fps
Audio	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone
Maximum fps vs Resolution	25@4MP, 30@2MP	25@4MP, 30@2MP	25@4MP, 30@2MP	25@4MP, 30@2MP	25@4MP, 30@2MP
Multi-Streaming	Dual Stream	Dual Stream	Dual Stream	Dual Stream	Dual Stream
Built-in Analytics	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection, Smart Intrusion Protection	Smart Motion Detection
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-30°C ~ 60°C (-22°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)
Environmental Casing	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68)	Weatherproof (IP68), Vandal proof (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)
Anti-Corrosion	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	-	Optional (approximately 2-3 years)
UL Listed	Yes	Yes	Yes	Yes	Yes
NDAA	Yes	Yes	Yes	Yes	Yes

Model	Z331-P1	K33	Z315	Z319	Z332
Product Type	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet
Maximum Resolution	4MP	5MP	5MP	5MP	5MP
Sensor Size	1/2.7"	1/2.7"	1/2.7"	1/2.7"	1/2.7"
Light Type	Adaptive IR LED: 50m, White LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m, White LED: 50m
Wide Dynamic Range	Superior (120 dB)	Extreme (130 dB)	Superior (120 dB)	Extreme (130 dB)	Extreme (130 dB)
LightGuard	-	-	Yes	Yes	-
Smart Dual Light	Yes	-	-	-	Yes
Maximum Frame Rate	30fps	30fps	30fps	30fps	30fps
Audio	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone
Maximum fps vs Resolution	25@4MP, 30@2MP	25@4MP, 30@2MP	25@5MP, 25@4MP, 30@2MP	25@5MP, 25@4MP, 30@2MP	20@5MP, 25@4MP, 30@2MP
Multi-Streaming	Dual Stream	Dual Stream	Dual Stream	Dual Stream	Dual Stream
Built-in Analytics	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-30°C ~ 60°C (-22°F ~ 140°F)	-30°C ~ 60°C (-22°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)
Environmental Casing	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)
Anti-Corrosion	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)
UL Listed	Yes	Yes	Yes	Yes	Yes
NDAA	Yes	Yes	Yes	Yes	Yes

Model	L33	L33-P1	Z318	Z325
Product Type	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet
Maximum Resolution	6MP	6MP	8MP	8MP
Sensor Size	1/2.4"	1/2.4"	1/2.7"	1/2.7"
Light Type	Adaptive IR LED: 55m, White LED: 50m	Adaptive IR LED: 55m, White LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m, White LED: 50m
Wide Dynamic Range	Extreme (140 dB)	Extreme (140 dB)	Extreme (130 dB)	Extreme (130 dB)
LightGuard	-	-	Yes	-
Smart Dual Light	Yes	Yes	-	Yes
Maximum Frame Rate	30fps	30fps	30fps	30fps
Audio	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone
Maximum fps vs Resolution	20@6MP, 20@5MP, 30@4MP, 30@2MP	20@6MP, 20@5MP, 30@4MP, 30@2MP	20@8MP, 30@5MP, 30@4MP, 30@2MP	20@8MP, 30@4MP, 30@2MP
Multi-Streaming	Triple Streams	Triple Streams	Dual Stream	Dual Stream
Built-in Analytics	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-30°C ~ 60°C (-22°F ~ 140°F)	-30°C ~ 60°C (-22°F ~ 140°F)
Environmental Casing	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)	Weatherproof (IP68)
Anti-Corrosion	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	-	-
UL Listed	Yes	Yes	Yes	Yes
NDAA	Yes	Yes	Yes	Yes

Dome

Product Matrix

Product Type	Fixed Dome
Application Environment	Indoor	Outdoor
Lens	Fixed focal	Fixed focal
2MP	Z914	Z910 Z97 K71 K71-P1 L71
4MP		Z911 K72 K72-P1 Z721 Z724
5MP		K73 Z912
6MP		L73 L73-P1
8MP		Z913

Comparison

Model

K71

K71-P1

K72

K72-P1

K73

L71

L73

L73-P1

Z721

Z724

Z910

Z911

Z912

Z913

Z914

Z97


Product Type

Outdoor Fixed Dome

Indoor Fixed Dome

Outdoor Fixed Dome

Maximum Resolution

2MP

4MP

5MP

2MP

6MP

4MP

2MP

4MP

5MP

8MP

2MP

Sensor Size

1/2.7"

1/2.4"

1/2.7"

1/1.8"

1/2.7"

Light Type

Adaptive IR LED: 50m

Adaptive IR LED: 55m, White LED: 50m

Adaptive IR LED: 30m

White LED: 40m

Adaptive IR LED: 50m

Adaptive IR LED: 40m

Wide Dynamic Range

Extreme (130 dB)

Extreme (140 dB)

Extreme (135 dB)

Superior (120 dB)

Extreme (130 dB)

Superior (120 dB)

LightGuard

Yes

Smart Dual Light

Yes

Maximum Frame Rate

30fps

Audio

1-way, Built-in Microphone

2-way, Built-in Microphone, Line-in, Line-out

1-way, Built-in Microphone

2-way, Built-in Microphone, Built-in Speaker, Line-in, Line-out

Maximum fps vs Resolution

30@2MP

25@4MP, 30@2MP

30@2MP

20@6MP, 20@5MP, 30@4MP, 30@2MP

30@4MP, 30@2MP

25@4MP, 30@2MP

30@2MP

25@4MP, 30@2MP

25@5MP, 25@4MP, 30@2MP

20@8MP, 30@5MP, 30@4MP, 30@2MP

30@2MP

Multi-Streaming

Dual Stream

Triple Streams

Dual Stream

Built-in Analytics

Smart Motion Detection

Smart Motion Detection, Smart Intrusion Protection, Counting

Smart Motion Detection, Smart Intrusion Protection

Smart Motion Detection

Smart Motion Detection, Smart Intrusion Protection, Object Metadata

Operating Temperature

-30°C ~ 60°C (-22°F ~ 140°F)

-40°C ~ 60°C (-40°F ~ 140°F)

-30°C ~ 60°C (-22°F ~ 140°F)

-40°C ~ 60°C (-40°F ~ 140°F)

-30°C ~ 60°C (-22°F ~ 140°F)

-10°C ~ 50°C (14°F ~ 122°F)

-30°C ~ 60°C (-22°F ~ 140°F)

Environmental Casing

Weatherproof (IP68), Vandal proof (IK10)

Weatherproof (IP68), Vandal proof (IK10), Vibration proof (EN50155)

Weatherproof (IP68), Vandal proof (IK10)

Anti-Corrosion

Optional (approximately 2-3 years)

UL Listed

Yes

NDAA

Yes

Digital Input/Output

1/1

Turret

Product Matrix

Product Type	Fixed Turret
Application Environment	Outdoor
Lens	Fixed focal
2MP	Z510 Z78
4MP	Z72 Z511 Z722 Z79 Z54
5MP	Z512 Z53
8MP	Z56

Comparison

Model	Z510	Z78	Z511	Z54	Z72
Product Type	Outdoor Fixed Turret	Outdoor Fixed Turret	Outdoor Fixed Turret	Outdoor Fixed Turret	Outdoor Fixed Turret
Maximum Resolution	2MP	2MP	4MP	4MP	4MP
Sensor Size	1/2.7"	1/2.7"	1/2.7"	1/1.8"	1/2.7"
Light Type	Adaptive IR LED: 50m, White LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m, White LED: 50m	White LED: 40m	Adaptive IR LED: 40m
Wide Dynamic Range	Superior (120 dB)	Superior (120 dB)	Superior (120 dB)	Extreme (135 dB)	Superior (120 dB)
LightGuard	-	-	-	-	Yes
Smart Dual Light	Yes	-	Yes	-	-
Maximum Frame Rate	30fps	30fps	30fps	30fps	30fps
Audio	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone
Maximum fps vs Resolution	30@2MP	30@2MP	25@4MP, 30@2MP	25@4MP, 30@2MP	25@4MP, 30@2MP
Multi-Streaming	Dual Stream	Dual Stream	Dual Stream	Dual Stream	Dual Stream
Built-in Analytics	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection, Smart Intrusion Protection	-
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-30°C ~ 50°C (-22°F ~ 122°F)
Environmental Casing	Weatherproof (IP68)	Weatherproof (IP68), Vandal proof (IK10)	Weatherproof (IP68)	Weatherproof (IP68), Vandal proof (IK10)	Weatherproof (IP68), Vandal proof metal casing (IK10)
Anti-Corrosion	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)
UL Listed	Yes	Yes	Yes	Yes	Yes
NDAA	Yes	Yes	Yes	Yes	Yes

Model	Z722	Z79	Z512	Z53	Z56
Product Type	Outdoor Fixed Turret	Outdoor Fixed Turret	Outdoor Fixed Turret	Outdoor Fixed Turret	Outdoor Fixed Turret
Maximum Resolution	4MP	4MP	5MP	5MP	8MP
Sensor Size	1/2.7"	1/2.7"	1/2.7"	1/2.7"	1/2.7"
Light Type	Adaptive IR LED: 50m, White LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m, White LED: 50m	Adaptive IR LED: 50m	Adaptive IR LED: 50m, White LED: 50m
Wide Dynamic Range	Superior (120 dB)	Superior (120 dB)	Extreme (130 dB)	Extreme (130 dB)	Extreme (130 dB)
LightGuard	-	-	-	Yes	-
Smart Dual Light	Yes	-	Yes	-	Yes
Maximum Frame Rate	30fps	30fps	30fps	30fps	30fps
Audio	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone	1-way, Built-in Microphone
Maximum fps vs Resolution	25@4MP, 30@2MP	25@4MP, 30@2MP	20@5MP, 25@4MP, 30@2MP	25@5MP, 25@4MP, 30@2MP	20@8MP, 30@4MP, 30@2MP
Multi-Streaming	Dual Stream	Dual Stream	Dual Stream	Dual Stream	Dual Stream
Built-in Analytics	Smart Motion Detection	-	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection
Operating Temperature	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-40°C ~ 60°C (-40°F ~ 140°F)	-30°C ~ 60°C (-22°F ~ 140°F)	-30°C ~ 60°C (-22°F ~ 140°F)
Environmental Casing	Weatherproof (IP68)	Weatherproof (IP68), Vandal proof (IK10)	Weatherproof (IP68)	Weatherproof (IP68), Vandal proof (IK10)	Weatherproof (IP68)
Anti-Corrosion	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	Optional (approximately 2-3 years)	-
UL Listed	Yes	Yes	Yes	Yes	Yes
NDAA	Yes	Yes	Yes	Yes	Yes

Specifications

Model	Z316	Z316-P1	Z317	Z317-P1	Z322	Z324
Type	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet
Resolution	2MP	2MP	4MP	4MP	4MP	4MP
Lens	f2.8mm	f4.0mm	f2.8mm	f4.0mm	f2.8mm	f2.8mm
Maximum fps vs Resolution	30@2MP	30@2MP	25@4MP 30@3MP	25@4MP 30@3MP	25@4MP 30@3MP	25@4MP 30@3MP
Horizontal Viewing Angle	108.6°	81.1°	99°	71.3°	97°	110.4°
IR LED	Yes, 50m	Yes, 50m	Yes, 50m	Yes, 50m	Yes, 50m	-
White LED	-	-	-	-	Yes, 50m	Yes, 40m
Corridor Mode	Yes	Yes	Yes	Yes	Yes	Yes
Audio	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic
NDAA	Yes	Yes	Yes	Yes	Yes	Yes
UL Certified	Yes	Yes	Yes	Yes	Yes	Yes

Model	Z315	Z319	Z318	Z323
Type	Fixed Bullet	Fixed Bullet	Fixed Bullet	Fixed Bullet
Maximum Resolution	5MP	5MP	8MP	8MP
Lens	Fixed focal, f2.8mm	Fixed focal, f2.8mm	Fixed focal, f2.8mm	Fixed focal, f2.8mm
IR LED	Yes, 50m	Yes, 50m	Yes, 50m	Yes, 50m
LightGuard	Yes	Yes	Yes	-
WDR	Superior WDR (120 dB)	Extreme WDR (130 dB)	Extreme WDR (130 dB)	Extreme WDR (130 dB)
ColorGuard	-	-	-	Yes
Smart Dual Light	-	-	-	Yes. Default IR; White Light can be enabled through configuration.
Compression	H.265 Adaptive Stream	H.265 Adaptive Stream	H.265 Adaptive Stream	H.265 Adaptive Stream
Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection	Smart Motion Detection
Weatherproof	IP68	IP68	IP68	IP68
NDAA	Yes	Yes	Yes	Yes
Audio	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic
UL Certified	Yes	Yes	Yes	Yes
Maximum fps vs Resolution	25@5MP	25@5MP	20@8MP 30@5MP	20@8MP

Model	Z914	Z910	Z97	Z911	Z721	Z912	Z714
Type	Fixed Dome	Fixed Dome	Fixed Dome	Fixed Dome	Fixed Dome	Fixed Dome	Fixed Dome
Resolution	2MP	2MP	2MP	4MP	4MP	5MP	8MP
Lens	f2mm	f2.8mm	f2.8mm	f2.8mm	f2.8mm	f2.8mm	f2.8mm
Horizontal Viewing Angle	126°	108.6°	102.1°	99°	101.1°	112.9°	99°
Maximum fps vs Resolution	30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288	30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360	30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 704 x 288 30 fps at 640 x 360 30 fps at 352 x 288	25 fps at 2688 x 1520 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360	30 fps at 2688 x 1520 30 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288	25 fps at 2880 x 1620 25 fps at 2560 x 1440 30 fps at 2304 x 1296 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360	20 fps at 3840 x 2160 30 fps at 3072 x 1728 30 fps at 2560 x 1440 30 fps at 1920 x 1080 30 fps at 1280 x 720 30 fps at 720 x 576 30 fps at 640 x 360 30 fps at 704 x 288 30 fps at 352 x 288
Analytics	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Corridor Mode	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Audio	-	Built-in Mic	-	Built-in Mic	-	Built-in Mic	Built-in Mic
NDAA	Yes	Yes	Yes	Yes	Yes	Yes	Yes
UL Certified	-	Yes	Yes	Yes	Yes	Yes	Yes

Model	Z78	Z72	Z79	Z54	Z722	Z53	Z723	Z724
Type	Fixed Turret	Fixed Turret	Fixed Turret	Fixed Turret	Fixed Turret	Fixed Turret	Fixed Turret	Fixed Dome
Resolution	2MP	4MP	4MP	4MP	4MP	5MP	8MP	4MP
Lens	f2.8mm	f2.8mm	f2.8mm	f2.8mm	f2.8mm	f2.8mm	f2.8mm	f2.8mm
Horizontal Viewing Angle	108.6°	101.1°	101.1°	110.4°	97°	112.9°	100.8°	110.4°
Maximum fps vs Resolution	30@2MP	25@4MP 30@3MP	25@4MP 30@3MP	30@2MP	25@4MP 30@2MP	30@2MP	30@2MP	30@2MP
IR LED	Yes, 50m	Yes, 40m	Yes, 50m	-	Yes, 50m	Yes, 50m	Yes, 50m	-
White LED	-	-	-	Yes, 40m	Yes, 50m	-	Yes, 50m	Yes, 40m
Analytics	-	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Corridor Mode	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Audio	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic	Built-in Mic
NDAA	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
UL Certified	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes

Model

K31

K31-P1

K32

K32-P1

K33

K71

K71-P1

K72

K72-P1

L31

L33

L33-P1

L71

L73

L73-P1


Type

Fixed Bullet

Fixed Dome

Fixed Bullet

Fixed Dome

Sensor Size

1/2.7 "

1/2.4 "

1/2.7 "

1/2.4 "

Lens

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

IR LED

Yes, 50m

Yes, 55m

White LED

Yes, 50m

WDR

Extreme WDR (130 dB)

Extreme WDR (140 dB)

Model

K31

K31-P1

K32

K32-P1

K33

K71

K71-P1

K72

K72-P1

L31

L33

L33-P1

L71

L73

L73-P1


Type

Fixed Bullet

Fixed Dome

Fixed Bullet

Fixed Dome

Sensor Size

1/2.7 "

1/2.4 "

1/2.7 "

1/2.4 "

Lens

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

Fixed focal, f2.8mm

Fixed focal, f4.0mm

IR LED

Yes, 50m

Yes, 55m

White LED

Yes, 50m

WDR

Extreme WDR (130 dB)

Extreme WDR (140 dB)

Solutions

ACTi Unified Solution Architecture consists of NVR servers and CMS

Products

K31

2MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K31-P1

2MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K32

4MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K32-P1

4MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K33

5MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K71

2MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K71-P1

2MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K72

4MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K72-P1

4MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
K73

5MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
L31

2MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
L31-P1

2MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
L33

6MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
L33-P1

6MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
L71

2MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
L73

6MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
L73-P1

6MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
Z315

5MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z316

2MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z316-P1

2MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z317

4MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z317-P1

4MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z318

8MP, Fixed Bullet, Day / Night, Adaptive IR, Extreme WDR, Superior Low Light Sensitivity, Built-in Analytics
Z319

5MP, Fixed Bullet, Day / Night, Adaptive IR, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z322

4MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z324

4MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z325

8MP, Fixed Bullet, Day / Night, Extreme WDR, Superior Low Light Sensitivity
Z330

2MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z330-P1

2MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z331

4MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z331-P1

4MP, Fixed Bullet, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z332

5MP, Fixed Bullet, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
Z510

2MP, Outdoor Fixed Turret, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z511

4MP, Outdoor Fixed Turret, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z512

5MP, Outdoor Fixed Turret, Day / Night, Extreme WDR, Extreme Low Light Sensitivity
Z53

5MP, Outdoor Fixed Turret, Day / Night, Adaptive IR, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z54

4MP, Outdoor Fixed Turret, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z56

8MP, Outdoor Fixed Turret, Day / Night, Extreme WDR, Superior Low Light Sensitivity
Z72

4MP, Outdoor Fixed Turret, Day / Night, Superior WDR, Superior Low Light Sensitivity, Built-in Analytics
Z721

4MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, M12, Built-in Analytics
Z722

4MP, Outdoor Fixed Turret, Day / Night, Superior WDR, Extreme Low Light Sensitivity
Z724

4MP, Outdoor Fixed Dome, Day / Night, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z78

2MP, Outdoor Fixed Turret, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z79

4MP, Outdoor Fixed Turret, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z910

2MP, Outdoor Fixed Dome, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z911

4MP, Outdoor Fixed Dome, Day / Night, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z912

5MP, Outdoor Fixed Dome, Day / Night, Adaptive IR, Extreme WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z913

8MP, Outdoor Fixed Dome, Day / Night, Adaptive IR, Extreme WDR, Superior Low Light Sensitivity, Built-in Analytics
Z914

2MP, Indoor Fixed Dome, Day / Night, Adaptive IR, Superior WDR, Extreme Low Light Sensitivity, Built-in Analytics
Z97

2MP, Outdoor Fixed Dome, Day / Night, Superior WDR, Extreme Low Light Sensitivity

More Products

Tools

Camera Selector

Easily select your desired cameras by viewing and comparing the specifications.

Open

Camera Matrix

Provide the complete overview of ACTi camera product line divided into segments with different value to customers.

Open

More Tools

Resources

Security Plus Brochure

Security Plus Solution Brochure introduces ACTi end-to-end security platform designed for highly critical systems. Learn how modern concepts, including real-time management, intelligence, integration and reliability, are combined into a complete solution.

Download

Product Matrix Flyer

The product flyer with all the cameras and standalone NVR/DVR, Q1 2026.

Download

Show more Download Center

Contact Us

sales@acti.com +886-2-2656-2588 +1-866-410-ACTi (2284)

About ACTi

Corporate

Career

Where to buy

Feedback

Press

Press Center

Events

Subscribe to eNewsletter

Resources

Video clips & Playlists

Download Center

Project Planner

Project References

Terms

Cookie Policy
