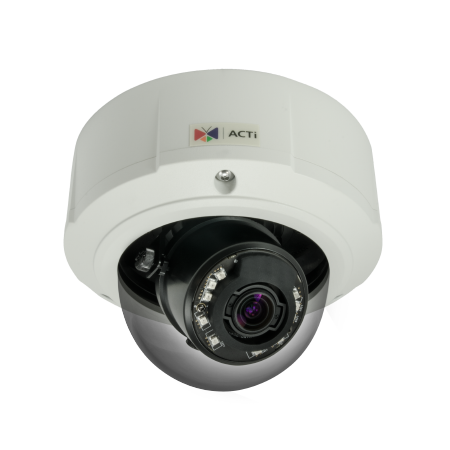

B81

5MP 3x with D/N, Infrarouge 40m, Gamme dynamique étendue 74dB
  • 5 Megapixel
  • Jour et nuit with IR LED Adaptatif
  • 3x Zoom Lens, f3.0-9mm/F1.2-F2.1, DC iris, Auto focus
  • Basique Gamme dynamique étendue (74dB)
  • Wide Angle
  • Event trigger, response and notification


Vue d'ensemble
Spécifications
Ressources
Solutions

Stock

Taipei: 0


Request a Quote

Similar Models

E815

Compare More

Ordering Information

  • B81
    5MP Outdoor Zoom Dome with D/N, Adaptive IR, Basic WDR, 3x Zoom lens, f3-9mm/F1.2-2.1 (HOV:85.7°-30.5°), DC iris, Auto Focus, H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE/DC12V, IP67, IK10, DI/DO

    USD $590.00

Device

Taper Zoom Dôme
Résolution Maximum 5MP
Environnement d'application Extérieur
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2 "
Effective Pixels 2592(H) X 1944(V) (5.04 MP)
Jour / Nuit Oui
Low Light Sensitivity Standard
Minimum Illumination Couleur: 0.1 lux at F1.2 (30 IRE, 2400 °K); B/W: 0 lux at F1.2 (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter Oui
IR Sensitivity Range 700-1100nm
Infrarouge IR LED Adaptatif x 10 (850 nm)
IR Working Distance 40m
Electronic Shutter 1/5-1/2000 sec (manual mode); 1/5-1/10000 sec (auto mode)
Horizontal Resolution (TV Lines) 1500 TVL
S/N Ratio 75 dB

Lentilles

Focal Length Zoom, f3.0-9mm
Aperture F1.2-F2.1
Rapport d'échelle 3x optical zoom
Zoom Application Camera Installation, Auto Zoom by Event, Manual Operation
Iris DC iris
Focus Auto focus
Lens Mount Board mount
Angle de vue horizontal 85.7° - 30.5°
Vertical Viewing Angle 64.6° - 23.2°
Viewing Angle Adjustment Pan: -175°-175°, Tilt: 5°-170°, Rotation: -175°-175°

PTZ

Position Absolue Oui
Pan, Tilt or Zoom protocol Visca, Pelco-D, Pelco-P, Commandes URL ACTi

Video

Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 15 fps at 2592 x 1944
15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
Multi-Diffusion Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps
Bit Rate Mode Constant, Variable
Gamme Dynamique Étendue Basique Gamme dynamique étendue (74 dB)
Image Enhancement balance des blancs, Luminosité, Contraste, Netteté de l'image, Automatic gain control, Flickerless
Réduction du bruit numérique DNR
Privacy Mask 4 configurable regions for each of 17 preset points
Text Overlay Yes
On-Screen Graphics (Picture Overlay) Yes
Server-based Analytics Comptage des objets, Comptage des personnes, Détection Faciale, Object Based Motion Detection, Tentatives de sabotage, Franchissement de ligne, Object Enter Area Detection, Objet disparu, Objet abandonné, Smoke Detection, Carte Thermique, Le temps de maintien, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

l'audio

Type Audio bidirectionnel, Entrée de source audio externe, Sortie de source audio externe
Audio Compression 8 kHz, 16 bit encoding, Mono, PCM, G.711

Réseau

Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1 x RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control, Standard IoT Security (anti-hacking, anti-malware)

Evènement

Event Trigger Video motion detection (3 regions), External device through digital input, Sound detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account)
Event Response Notify control center, Go to Zoom preset point or preset tour, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output

System

System Monitor CPU loading, memory usage and network statistics via API
Watchdog Support

Integration

Unified Solution Fully compatible with ACTi software
Software Development Kit Oui
GPS Position Manual setting
Edge Recording Support (integration with NVR by ONVIF Profile G or proprietary protocol)*
ONVIF Compliant Oui, Profile S, Profile G, Profile T, Profile Q
GB28181 Compliant Oui
Navigateur Web IE 11, Google Chrome, Microsoft Edge, Apple Safari
Auto Firmware Upgrade Oui

Interface

Interface Audio Terminal block
Entrées/Sorties Numériques 2/2
Operating Button Reset Button

General

Power Source DC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption 9.24 W (PoE)
Weight 1286g (2.835lb)
Dimensions (Ø x H): 152mm x 114.5mm (6.0" x 4.5")
Environmental Casing Étanche (IP67), Anti-vandale
(IK10)
Corrosion Protection Optional for project request. Chassis corrosion resistance at the seashore approximately 10 years.
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Chauffage Oui
Starting Temperature -40°C ~ 50°C (-40°F ~ 122°F) within 30 minutes
Operating Temperature -40°C ~ 50°C (-40°F ~ 122°F)
Operating Humidity 10% - 85% RH, non-condensing
Approvals CE Class B, FCC Class B, EAC, CB, IP67, IK10, NEMA 4X, UL Listed (UL 60950-1)
Real-time Clock (RTC) Oui
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
Comments * Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
