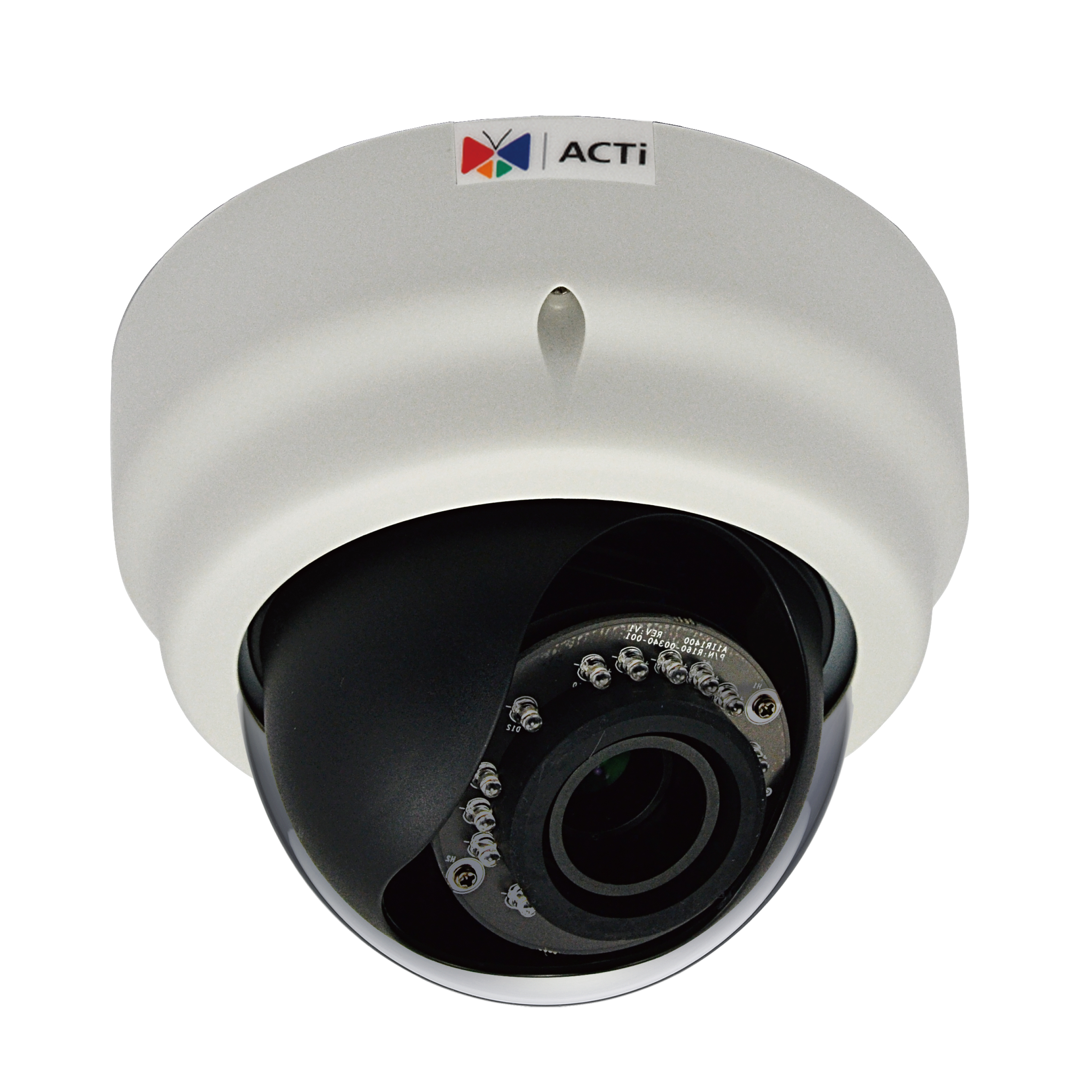

E62 (Discontinued)

3MP with 赤外線 15m (0 lux, 30IRE, Gain 255, Auto shutter mode), 広いダイナミックレンジ 74dB Vari-focal Lens
  • 3 Megapixel, f2.8-12mm Vari-focal
  • 昼と夜 with Adaptive IR LED
  • Event trigger, response and notification
概要
仕様
リソース

Service Schedule

Clearance Starts: 2014/03/27
テクニカルサポート: 2018/06/26

Stock

Taipei: 0


Request a Quote

Ordering Information

MSRP in United States

  • E62
    3MP Indoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens, f2.8-12mm/F1.4 (HOV:70.5°-28.2°), H.264, 1080p/30fps, DNR, MicroSDHC/MicroSDXC, PoE, IK09

Device

タイプ ハーフドーム
Maximum Resolution 3MP
アプリケーション環境 屋内
Image Sensor Progressive Scan CMOS
Sensor Size 1/3.2 "
Effective Pixels 2592(H) X 1944(V) (5.04 MP)
昼 / 夜 持っている
Low Light Sensitivity スタンダード
Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400 K); B/W: 0 lux at F1.4 (IR LED on)
Color to B/W Switch ISP based switch, configurable
Mechanical IR Cut Filter 持っている
IR Sensitivity Range 700-1100nm
赤外線 Adaptive IR LED x 15 (850 nm)
IR Working Distance 15m (0 lux, 30IRE, Gain 255, Auto shutter mode)
Electronic Shutter 1/5-1/2000 second (manual mode); 1/5-1/10000 second (auto mode)
Horizontal Resolution (TV Lines) 1350 TVL
S/N Ratio 52 dB

レンズ

Focal Length Vari-focal, f2.8-12mm
Aperture F1.4
Iris Fixed iris
Focus Manual focus
Lens Mount Board mount
Horizontal Viewing Angle 70.5° - 28.2°
Vertical Viewing Angle 38.5° - 15.5°
Viewing Angle Adjustment Pan: 0°-350°, Tilt: 17°-163°, Rotation: 0°-350°

ビデオ

Compression H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution 15 fps at 2048 x 1536
30 fps at 1920 x 1080
30 fps at 1280 x 720
30 fps at 800 x 600
30 fps at 640 x 480
15 fps at 320 x 240
マルチストリーミング Simultaneous dual streams based on two configurations
Bit Rate 28Kbps - 6Mbps
Bit Rate Mode Constant, Variable
Wide Dynamic Range Basic 広いダイナミックレンジ (74 dB)
Image Enhancement White Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless
Digital Noise Reduction DNR
Privacy Mask 4 configurable regions
Text Overlay Yes
On-Screen Graphics (Picture Overlay) Yes
Server-based Analytics Object Line Counting, ピープルカウント, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image Orientation Flip, Mirror

Network

Network Protocol & Service IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port 1, Ethernet (10/100 Base-T), RJ-45 connector
Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control, Standard IoT Security (anti-hacking, anti-malware)

Event

Event Trigger Video motion detection (3 regions),
Event Response Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to storage, Upload video or snapshot to FTP server, Upload video to NVR server

Integration

Unified Solution Fully compatible with ACTi software
Software Development Kit 持っている
GPS Position Manual setting
ONVIF Compliant 持っている, Profile S, Profile G, Profile Q
GB28181 Compliant 持っている
Web Browser IE 11 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
Auto Firmware Upgrade 持っている

General

Power Source PoE Class 2 (IEEE802.3af)
Power Consumption 5.18 W (PoE, IR on)
Weight 500g (1.102lb)
Dimensions (Ø x H): 146mm x 113.9mm (5.8" x 4.5")
保護カバーレベル Vandal resistant (IK09)
Mount Type Surface, Gang Box, Flush, Pendant, Converter for NPT Standard Mounts, Wall Mount, Pole Mount, Corner Mount
Starting Temperature -10°C ~ 50°C (14°F ~ 122°F)
Operating Temperature -10°C ~ 50°C (14°F ~ 122°F)
Approvals CE, FCC, IK09, UL (for optional PoE injector)
Real-time Clock (RTC) No
Warranty 3 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty
